This page is still a draft. Sooner or later it should give an introduction to strebers database scheme.

Overviewπ


On itemsπ

Most of data elements handled by streber are derived from DbProjectItems: Projects, tasks, comments. Anything related to a project.

These elements are composed of two parts:
  1. The item for common data like Type, access information and dates.
  2. The date from another table like "task", "person" etc.

Tables with itemsπ

projectπ

taskπ

personπ

fileπ

commentπ

effortπ

companyπ

Other tables π

There are a number of other tables with different purposes:

dbπ

This table holds information about the current version of the database scheme. The database version is checked, when directly accessing index.php. If the database scheme is out of data, the installation tries to upgrade automatically.

itemchangeπ

This table holds a list of all changes done to DbProjectItems fields for which log_changes is enabled. The actually logging of difference is quiet complex and needs some further documentation.

see: item_change.inc.php


projectpersonπ

Projectperson joins persons with projects. It defines teams and stores rights of a team member.

taskpersonπ

Assigns a person to a task. The assignment stuff is pretty complex and needs some further documentation.


employmentπ

This table joins persons with companies. It is only used for rendering information in personView and companyView.

issueπ

This table extends the fields of task with information of a bug report (e.g. Version numbers and detailed description of an issue). It the referenced by the issue_report field of the task table.



Also seeπ

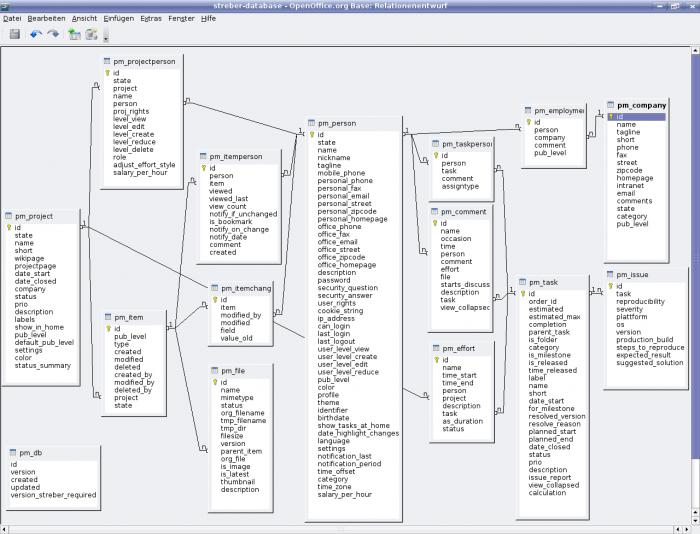

As a start you find here an Entity-Relation-Diagram and the Openoffice file i used to create it
(how? see ERD of streber database - xl )
